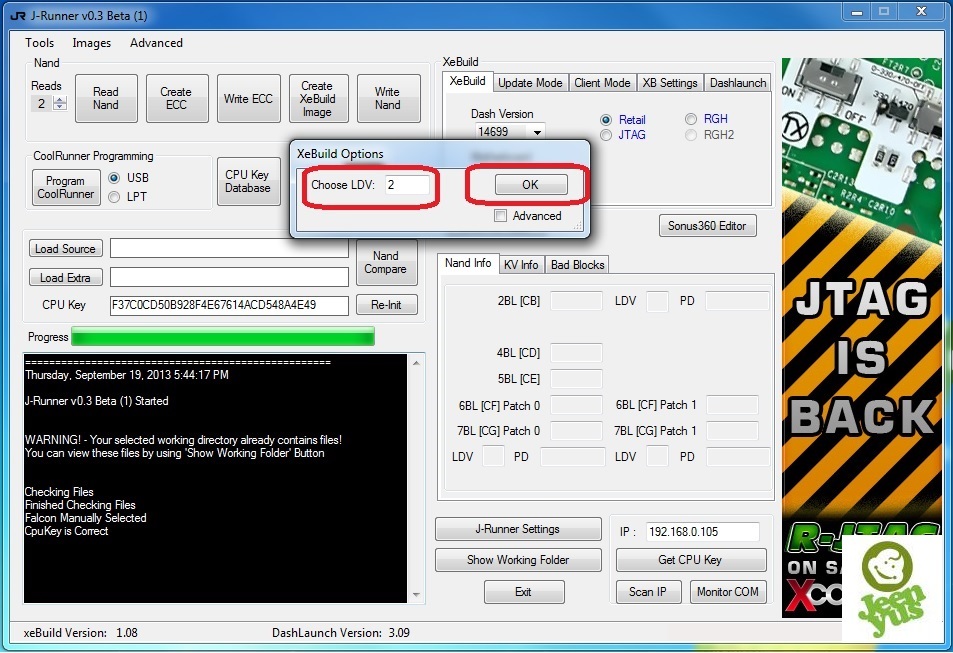

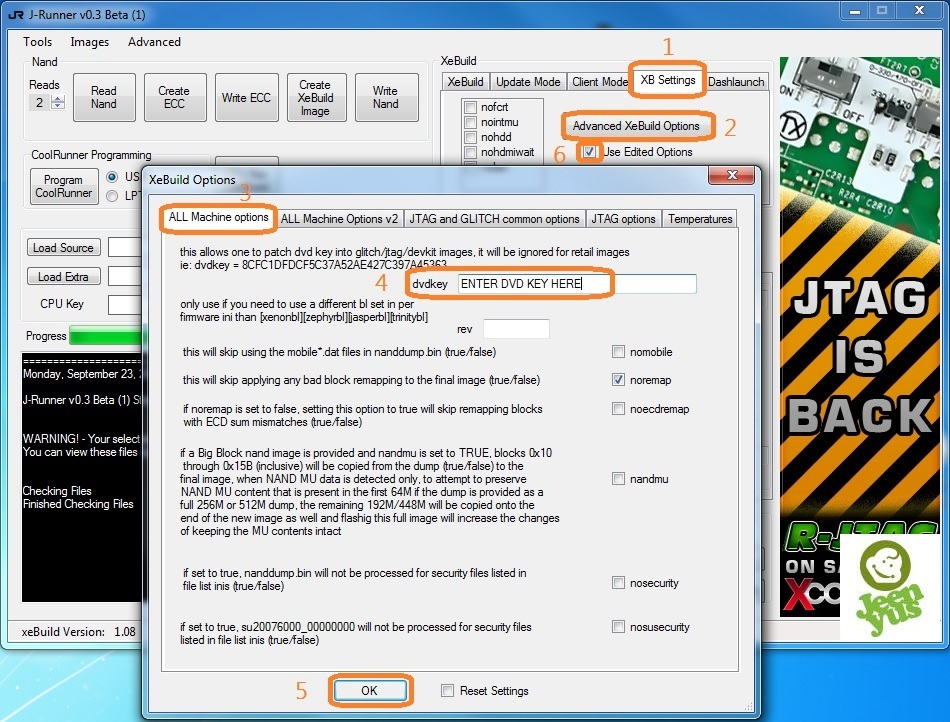

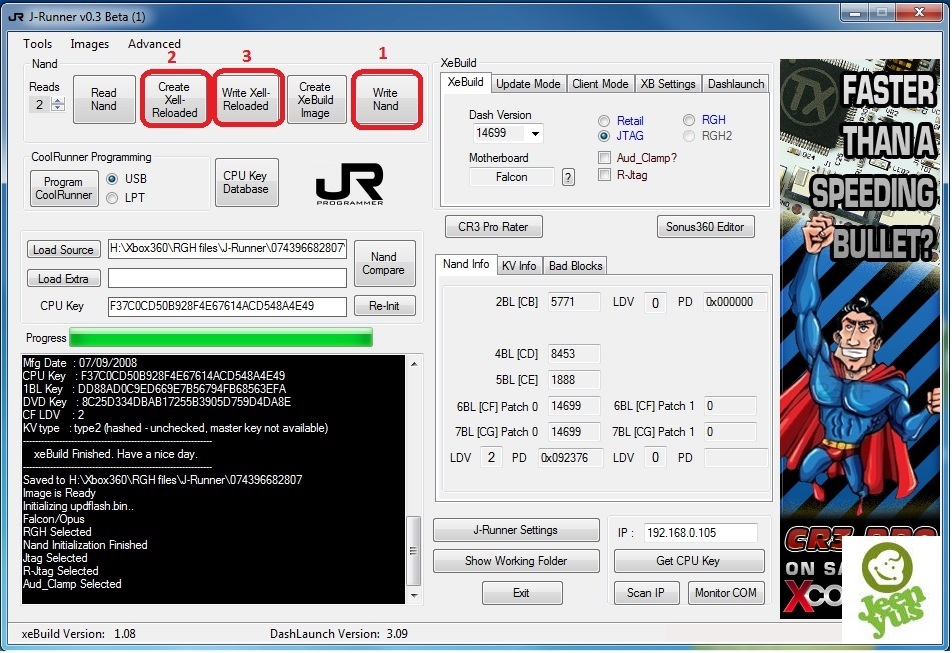

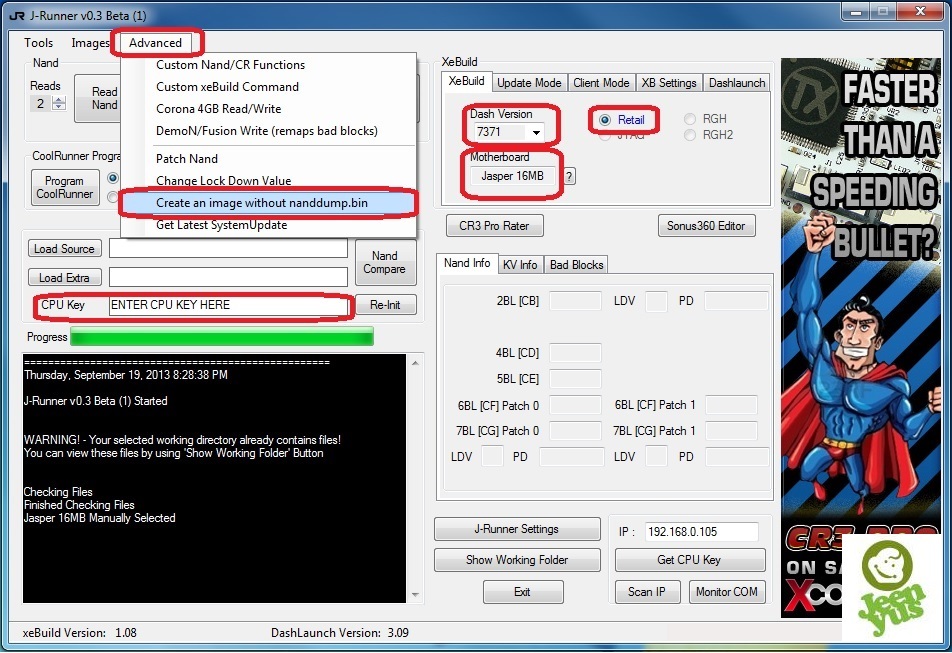

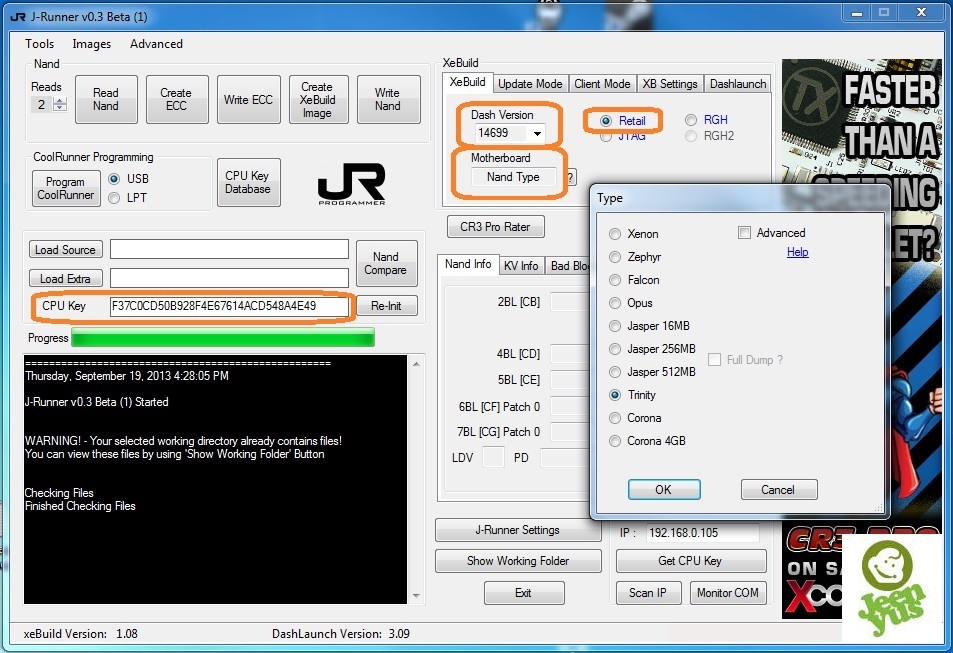

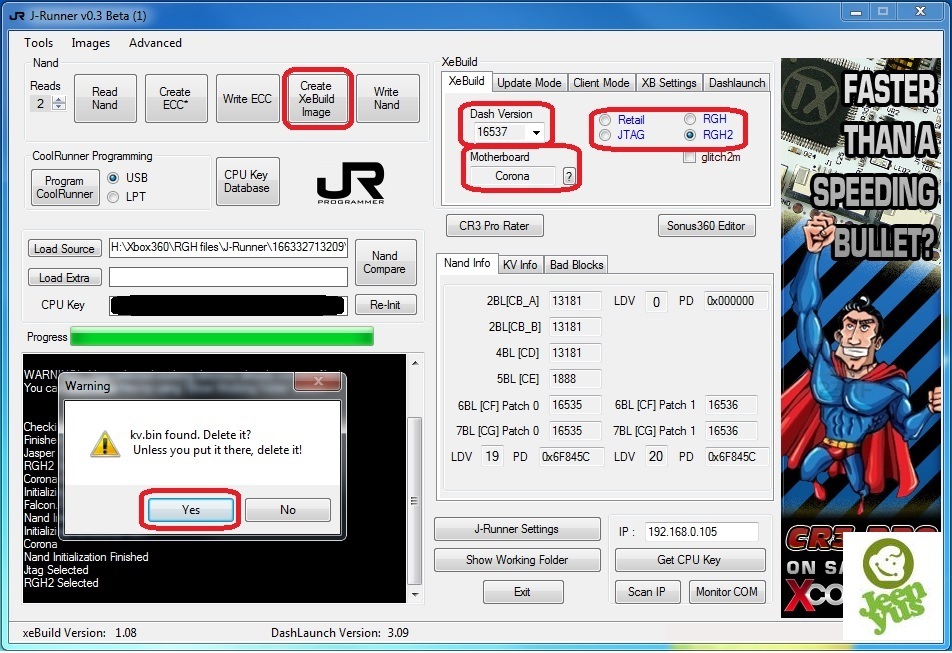

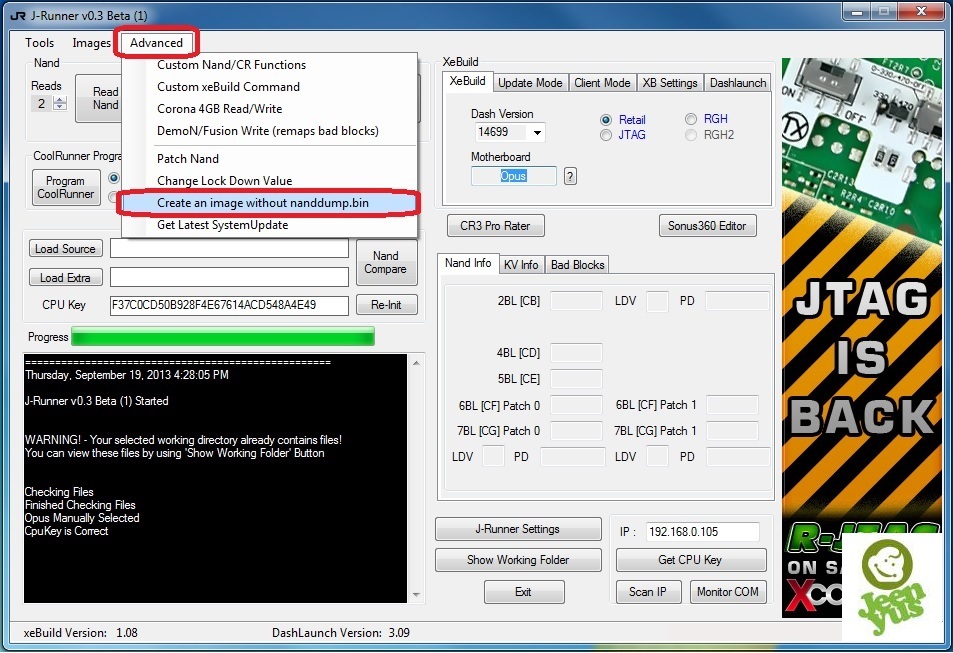

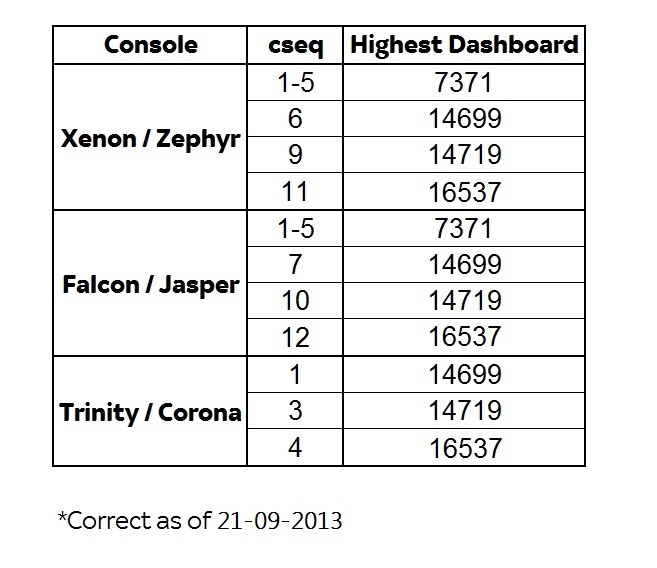

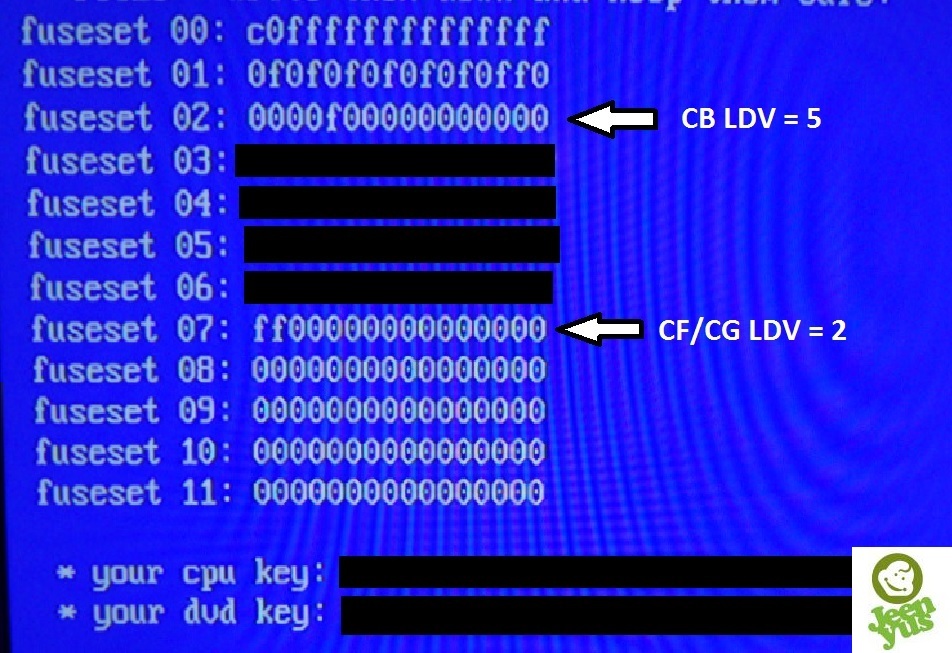

Anonymous 95 Posted March 26, 2014 This tutorial is only for those of you who; lost all of their original and hack nand dumps + erased/corrupted the nand/flash the wrong image to the nand. If you find yourself in this situation then this tutorial will walk you step by step to make your console boot hack dash again. Take note that you won't be able to restore your console to retail ever again and you will be unable to use your dvd drive until you extract the key off of it. Things you will need; usb spi nand programmer(nand-x, jr-programmer, any will do(eMMC R/W kit for corona 4gb) J-Runner the ultimate JTAG/RGH app DOWNLOAD Extracted nand files that match you motherboard model (download below) Step 1; Recovery of cpu key and LDV's Download one of the clean extracted donor nand files according to your motherboard model and extract the containing folder to the location of your choice; Don't use these files to unban your console, first you don't have the original cpu key and second they are all from ban consoles. You have been warned! corona 4gb.rar corona 16mb.rar falcon opus.rar jasper bb.rar jasper sb.rar trinity.rar trinitynofcrt.rar xenon.rar zephyr.rar Next you need to solder/plug in your nand programmer wires onto the motherboard Open J-Runner app an click on "show working folder" button located at the bottom right Open the folder name "data" located inside /J-Runner/xeBuild/ folders Open your extracted nand files folder and copy and paste KV.bin, SMC.bin, smc_config.bin and fcrt.bin(if required) to data folder. It should look like this. In J-Runner, copy and paste this cpu key F37C0CD50B928F4E67614ACD548A4E49 in the cpu key section. Choose dashboard version according your hack type (for JTAG choose 7371 - for phat rgh1 choose 14699 - for R-JTAG choose 15574 - for phat RGH2 choose 14719 - for slim choose anything above 14719) Select your motherboard nand type. Select retail as your image type. It should look like this. In J-Runner under the Advanced tab click on Create an image without nanddump.bin Then you will be ask to enter LDV just enter any number between 1 and 80 and click ok. At this point the dummy image should be successfully created and automatically loaded in the "Load Source" section. Now with your nand programmer properly connected to both you pc and motherboard click on "Write Nand". Wait until J-Runner is finish writing the nand and select your "hack type" then click on "Create ECC" for rgh machine or "Create Xell-Reloaded" for JTAG/R-JTAG machine. Now click on "Write ECC" or "Write Xell-Reloaded" depending on your hack type. You are now ready to boot xell and recover your cpu key. Power on your console and wait for xell to boot. Once xell as booted write down your cpu key, fuseset 02 and fuseset 07 Understanding and calculating LDV's Calculating CF/CG ldv is fairly simple. Just count the number of "F" in fuseset 07 to fuseset 11. So in the example above we have a cf/cg lock down value of 2. Calculating CB LDV can be a little bit more trickier. You have to take the right-most "F" and calculate how many character it is from the left. In the example above the right-most "F" is 5 characters from the left so we have a cb lock down value of 5. Understanding CB LDV; Quote from Martin C @ TX Quote This value is NOT updated every dashboard version and is not directly reflected in any apps. However, the value can be translated to a CB/dashboard version. You cannot 'edit' your image to use a different CB for a retail NAND. It MUST match the entry as found in XeLL, otherwise it'll fail to boot. The example above is from a Jasper with a cb ldv cseq of 5 and by looking at the chart below we can determine that dashboard 7371 would be the highest version acceptable for this particular console. Step 2; Building the fake OG nand image Now back in J-Runner, enter your cpu key in the cpu key section. Select your dashboard according to your CB LDV cseq Select Retail as Image type. Select Motherboard nand type. Click on the "Advanced" tab and on "create an image without nanddump.bin" You will be ask for LDV, this is the cf/cg LDV so you enter what you have in fuseset 07 and click "ok" You have now created a fake original nand image. Even though you won't be able to boot your console with this image it would still be a good idea to keep it somewhere safe. With your new image loaded in the "Load Source" section and your cpu key in the "Cpu Key" section click on the "kv info" tab. You will noticed that the info in there are obviously not from your console. So now would be a good time, for those who can, to extract your dvd drive key and patch the key vault with the appropriate dvd key. Click on the "XB Settings" tab, click on "Advanced XeBuild Options", paste your dvd key in the "dvdkey" section, click "OK" then click the "Use Edited Options" check box. For DG16D5S and DLN10N owners; the easiest and cheapest way to make your dvd drive functional would be to install a TX LTU 2 pcb. Final Part; Building/writing your hack image Back in J-Runner, with your new fake original nand image loaded in the "Load Source" section and cpu key in the "Cpu Key" section select hack image type(Jtag - rgh - rgh2 - r-jtag), select your desired dashboard(should be the latest which is 16537 at the moment of write), select motherboard nand type. You can also edit dashlaunch and xeBuild options at this point. Click on create xeBuild image. You will see 3 or 4 warning messages poping up which will ask you if you want to delete kv.bin, smc.bin, fcrt.bin and smc_config.bin. Click yes on all of them. With your nand programmer properly connected to both your console and pc click on "Write Nand" ​ Boot your console and have fun. 11 2 Quote Share this post Link to post Share on other sites
ignacio_m 2 Posted September 23, 2014 Really thanked... Great tutorial. i'm trying to revive an old jasper that were nand corrupted by the shitty lpt nand dumper... 1 Quote Share this post Link to post Share on other sites
FourTwentyBlazeItm8 1 Posted November 30, 2014 Is the Jasper SB a Jasper RGH2? 1 Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted November 30, 2014 Is the Jasper SB a Jasper RGH2? You mean the data supplied? or? Jasper consoles can be any of these: JTAG, RGH, RGH2, R-JTAG, RGH2+, R-JTAG+ The same goes for ANY phat console; Xenon, Zephyr, Falcon, Jasper (both SB and BB) Trinity can be any of these: RGH, RGH2 (Basically the same as RGH1 on Trinity really), RGH2+ Corona can be any of these: RGH2, RGH2+ Quote Share this post Link to post Share on other sites
Waseemelectronix 1 Posted December 2, 2014 Thanx for great tutorial, can we buid retail image with this guide for corona consoles while rgh2 nand is written? 1 Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted December 2, 2014 Thanx for great tutorial, can we buid retail image with this guide for corona consoles while rgh2 nand is written? No, retail requires your own data to be present... however, if you have a working image on your console you can just build a new retail using xeBuild GUI for instance... keep in mind tho, the retail have to be built using a compatible kernel (whatever was on your console when it was first hacked) 1 Quote Share this post Link to post Share on other sites
Nilabh Tiwari 5 Posted January 28, 2015 I'm unable to find j-runner. I would really appreciate somebody could provide a working a link . 1 Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted January 28, 2015 I'm unable to find j-runner. I would really appreciate somebody could provide a working a link . http://www.homebrew-connection.org/files/xbox/nand_builder/J-Runner/dl_J-Runner%20v02%20Beta%20%28286%29%20Core%20Pack.rar this is a old version, but it should be able to update... Quote Share this post Link to post Share on other sites

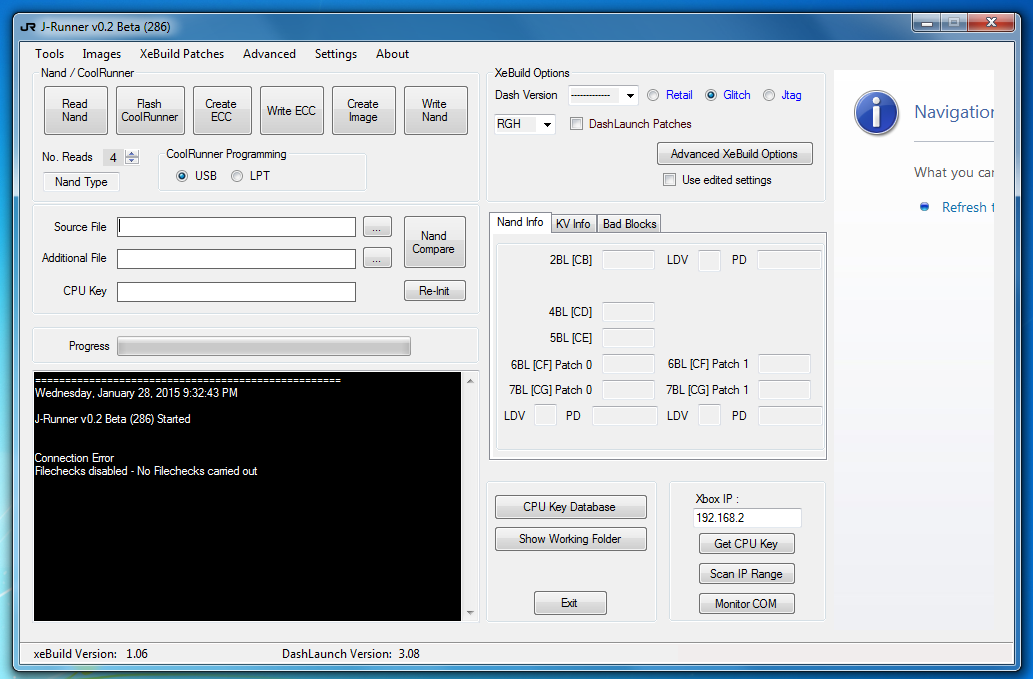

Nilabh Tiwari 5 Posted January 28, 2015 http://www.homebrew-connection.org/files/xbox/nand_builder/J-Runner/dl_J-Runner%20v02%20Beta%20%28286%29%20Core%20Pack.rar this is a old version, but it should be able to update... I don't find no update option for it. I wanna know does this software function online or offline, will it work? Here is a screenshot of what I have I just wanna use to fix bad blocks on my nand Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted January 28, 2015 I don't find no update option for it. I wanna know does this software function online or offline, will it work? Here is a screenshot of what I have Untitled.png I just wanna use to fix bad blocks on my nand Ahh, i see... it can't download as the server it's on is down... Anyways, you cannot FIX bad blocks, they're there... they're normal... what you can do is deal with them by remapping Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 followed tutorial and this came up..?? not sure what i am doing wrong. Saturday, February 21, 2015 12:13:36 AMJ-Runner v0.3 Beta (7) StartedWARNING! - Your selected working directory already contains files!You can view these files by using 'Show Working Folder' ButtonVersion v0.3 Beta (7) is available for download.Checking FilesFinished Checking FilesDownloaded *xeBuild/12611/_jtag.iniFinished Checking FilesDownloaded *xeBuild/12625/_jtag.iniFinished Checking FilesDownloaded *xeBuild/9199/_jtag.iniFinished Checking FilesZephyr Manually SelectedCpuKey is CorrectLoad Files Initiliazation Finished14699Couldn't add dashlaunch patches to D:\Documents and Settings\Gixxxer\Desktop\JRunner\xeBuild\14699\_glitch2.iniCouldn't add dashlaunch patches to D:\Documents and Settings\Gixxxer\Desktop\JRunner\xeBuild\14699\_glitch2m.iniStarted Creation of the 14699 xebuild image--------------------------------------------------------------- xeBuild v1.14.693---------------------------------------------------------------base path changed to D:\Documents and Settings\Gixxxer\Desktop\JRunner\xeBuild---- { Image Build Mode } ----building retail image**** could not read cb.4571.bin (-1) *********** ERROR: critical bootloader files are missing, cannot proceed!***** FATAL BUILD ERROR: -1 unable to complete NAND image--------------------------------------------------------------- xeBuild Finished. Have a nice day.---------------------------------------------------------------FailedCpuKey is CorrectLoad Files Initiliazation Finished14699Couldn't add dashlaunch patches to D:\Documents and Settings\Gixxxer\Desktop\JRunner\xeBuild\14699\_glitch2.iniCouldn't add dashlaunch patches to D:\Documents and Settings\Gixxxer\Desktop\JRunner\xeBuild\14699\_glitch2m.iniStarted Creation of the 14699 xebuild image--------------------------------------------------------------- xeBuild v1.14.693---------------------------------------------------------------base path changed to D:\Documents and Settings\Gixxxer\Desktop\JRunner\xeBuild---- { Image Build Mode } ----building retail image**** could not read cb.4571.bin (-1) *********** ERROR: critical bootloader files are missing, cannot proceed!***** FATAL BUILD ERROR: -1 unable to complete NAND image--------------------------------------------------------------- xeBuild Finished. Have a nice day.---------------------------------------------------------------Failed Quote Share this post Link to post Share on other sites
gavin_darkglider 1555 Posted February 21, 2015 You need to get a newer version that will update, or one that has all of the files required to build a nand image. Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 fcrt.bin was not in .rar could that affect it? Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted February 21, 2015 fcrt.bin was not in .rar could that affect it? FCRT.bin is one of the per-console files, so no that's not it... this error is strictly related to the bootloaders... Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 any idea where i can find what i am missing by chance. im seriously bout to scrap this console. Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted February 21, 2015 any idea where i can find what i am missing by chance. im seriously bout to scrap this console. Send me your key and i'll make you a donor image during the day... oh, i will also be needing you to tell me what hack your zephyr have, if it really is a zephyr? Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 i dont have a key. long story short this was my first attempt at rgh. backups was on a different computer, house burned down computer long with it. I had a nand dump saved but it would not write ecc. so i guessing nand dump was an over written file since i was never given option to overwrite. Therefor i ended up here trying to use a donor. Also just a heads up i am using a clone chip . If you need pics i will send them. Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted February 21, 2015 i dont have a key. long story short this was my first attempt at rgh. backups was on a different computer, house burned down computer long with it. I had a nand dump saved but it would not write ecc. so i guessing nand dump was an over written file since i was never given option to overwrite. Therefor i ended up here trying to use a donor. Also just a heads up i am using a clone chip . If you need pics i will send them. Ok, so you're at the stage where you need to make yourself a ecc? do you know what hack your console supports? if not; go with RGX... the pre-compiled RGH2 images, or R-JTAG (but that requires a new chip) ** Edit: ** Oh, and if you haven't written anything to your console yet, just dump your console again... Donor is really only for when you've f*cked up big time by overwriting the nand (the physical nand) with someone elses data and don't have a dump laying around... Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 should be rgh 1 dash was in the 9xxx if i remember correctly. i have kept a dump of the original nand that i dumped after picking this console back up to work on it again. however with that same nand i was unable to create ecc or boot to xell. I tried multiple times, resoldered ,nor was not receiving any weird flash config codes. From everythign i had read this lead me to believe i had overwritten my nand physically thats why i started searching for donor. I have overwritten my nand at least once with a donor however it didnt boot to xell so i reflashed back to the frst nand. gimme a sec and i will rerun the whole rgh start process and post my jrunner Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted February 21, 2015 Send me any dumps you do have and i'll try to help you build a working image, with RGH you can't really say "this image doesn't work" when it's your early days of hacking yourself, especially when using clones/pirated chips as they can be lower quality, if they even work at all... Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 Saturday, February 21, 2015 1:27:35 AMJ-Runner v0.3 Beta (7) StartedWARNING! - Your selected working directory already contains files!You can view these files by using 'Show Working Folder' ButtonChecking FilesFinished Checking FilesDownloaded *xeBuild/9199/su20076000_00000000Downloaded *xeBuild/9199/_jtag.iniFinished Checking FilesVersion: 01Flash Config: 0x0119801001198010Xenon, Zephyr, Opus, FalconCB Version: 4578ZephyrReading Nand to C:\Users\Gixxxer\Desktop\J-Runner v3 (5) Core Pack\J-Runner v3 (5) Core Pack\nanddump1.binReading NandDone!in 3:25 min:secReading Nand to C:\Users\Gixxxer\Desktop\J-Runner v3 (5) Core Pack\J-Runner v3 (5) Core Pack\nanddump2.binInitializing nanddump1.bin..Header is wrong..ZephyrGlitch SelectedNand Initialization FinishedReading NandDone!in 3:25 min:secComparing...Nands are the sameProgramming CoolrunnerC:\Users\Gixxxer\Desktop\J-Runner v3 (5) Core Pack\J-Runner v3 (5) Core Pack\common\xsvf\zephyr.xsvfUSB XSVF Player InitializedXilinx XC2C64A-VQ44 ......... [DETECTED]Erase SucceededFile: C:\Users\Gixxxer\Desktop\J-Runner v3 (5) Core Pack\J-Runner v3 (5) Core Pack\common\xsvf\zephyr.xsvfSending Out Packets .........SuccessHeader is wrong..Invalid ImageFailed to create ecc image Quote Share this post Link to post Share on other sites
rigbyscamaro89 7 Posted February 21, 2015 understandable risk that i accepted with the clone. probrably not the best decision for first rgh but at the time i was broke. chip looks decent quality only thing that looks off besides the missing emblems is how the jumpers are done. Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted February 21, 2015 Send me that dump and i'll check what exactly it contains, from the looks of it it contains the ECC patched thingymagoo... if that's the case, i can probably help you even tho JRunner refuses... Quote Share this post Link to post Share on other sites
blackspider 0 Posted March 8, 2015 Corona 4GB.rar missing KV.bin, how to fix? Quote Share this post Link to post Share on other sites
Swizzy 2078 Posted March 9, 2015 Corona 4GB.rar missing KV.bin, how to fix? Grab the other Corona.rar Quote Share this post Link to post Share on other sites
