x360ace V5 chip

Recommended Posts

I noticed that x360ace has released new chips since V3, with the most recent being V5. Does anyone have experience with these new chips?

The new chips seem to use a new clock signal from the 360 motherboard. Is this actually useful or just a cost saving feature? It would be interesting to know the clock signal frequency and if it is in any way in phase with the CPU clock?

Install pictures for the new chips: http://x360ace.com/product/



Share this post


Link to post
Share on other sites
6 hours ago, baabox said:

I noticed that x360ace has released new chips since V3, with the most recent being V5. Does anyone have experience with these new chips?

The new chips seem to use a new clock signal from the 360 motherboard. Is this actually useful or just a cost saving feature? It would be interesting to know the clock signal frequency and if it is in any way in phase with the CPU clock?

Install pictures for the new chips: http://x360ace.com/product/



to be honest.. there is better methods.. the new chip requires different soldering points that your usual setups from before..



try rgh 1.2 or s-RGH as the cheapest options for the console

Share this post


Link to post
Share on other sites

I know S-RGH - it's usually done with the ace V3 chip. It's usually just a bit of a hassle to find the optimal timings.

I'm just interested if the chinese have figured out something or not with this new chip.

Share this post


Link to post
Share on other sites
7 hours ago, baabox said:

I know S-RGH - it's usually done with the ace V3 chip. It's usually just a bit of a hassle to find the optimal timings.

I'm just interested if the chinese have figured out something or not with this new chip.

well you can tell that with the c1 and c2 points.. THOSE are new.. lol

Share this post


Link to post
Share on other sites

Most likely it's just cheaper to do it that way, there's less components for that chip as it has no crystal as is required for other chips on corona

Share this post


Link to post
Share on other sites

just installed ace v5 on a trinity P1 install and it boots between 1-3 every time loving it

Share this post


Link to post
Share on other sites

the ace v5 is usually shit on trinitys. Its OK on coronas. I recommend the matrix v3 with oscillator so you can do falcon - corona with it.

Share this post


Link to post
Share on other sites

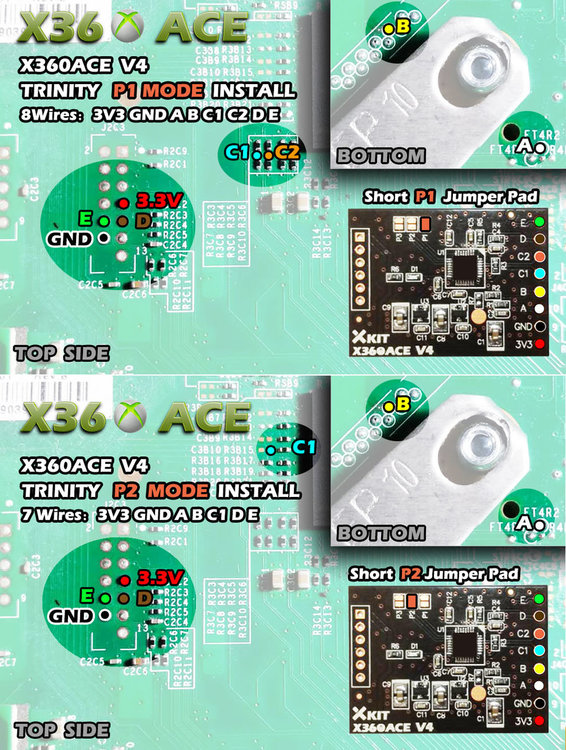

to be honest i have never had a problem with the ace chips and i have done 3 trinity on the ace 5 using the P1 method and have had great boot times so i suppose its all down to prefrence really

Share this post


Link to post
Share on other sites

Hi,



About the ace V5 on Trinity. NEWER USE P1 install for Trinity! Has killed two trinity MB. first power on glitch correctly but no Xell. after restart no glitch anymore. Write back the original nand I got ROD. but with P2 install Trinity boot until 5sec, always.
